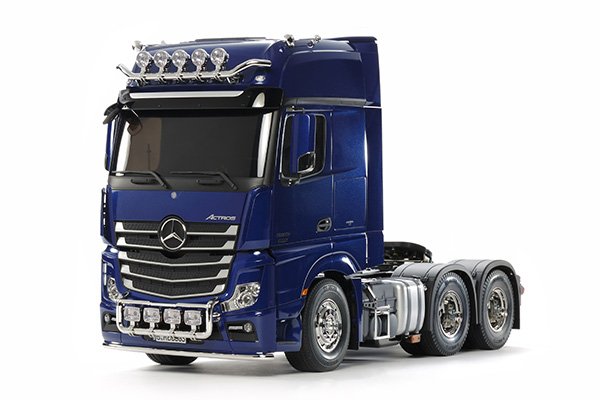

Tamiya TAM56354 1/14 Scale RC Mercedes-Benz Actros - 3363 6x4 GigaSpace Pearl Blue
1/14 R/C Tractor Truck Series No.54 Mercedes-Benz Actros 3363 6x4 GigaSpace (Pearl Blue Edition) Item No: 56354
- Brand:
- Tamiya
- Availability:
- In stock
- Delivery time:
- 3-4 Days
$469.99
| A Customized 3-Axle Beauty! The 2012 Truck of the Year award-winning Actros series is the flagship of the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Actros 3363 6x4 GigaSpace model, which runs on a 15.6-liter turbocharged inline-6 engine capable of 630hp. The model's highly detailed pre-painted body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper. Its ladder frame chassis features aluminum side channels with resin cross members, while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter. |
| A Beautiful Pre-Painted Finish Don't have the time, space or confidence to apply a paint job? Then this kit is for you - all body parts are pre-painted in a sumptuous shade of pearl blue, with clear topcoat applied. Assemble, paint small parts in semi gloss black, and your body is ready for use! |
| Realistic Lights, Sounds, and Vibration Tamiya Multi-Function Control Units (included for Japanese market only, available separately overseas) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips. |
| Specifications ●Length: 538mm, Width: 195mm, Height: 305mm, Weight (without optional parts): Approx. 3.9kg ●Wheelbase: 237＋103mm ●Tread: 155mm (Front), 138mm (Rear, Double Tire) ●Chassis: Aluminum & Polycarbonate Resin Ladder Frame ●Suspension: Front/Rear Leaf Springs ●Caster Angle (Front/Rear): 0°/0° ●Camber Angle (Front/Rear): 0°●Toe Angle: 0°(Front & Rear) ●Dampers: Aluminum Dummy Dampers (Front & Rear) ●Drivetrain: Rear Double Axle Drive ●Transmission: 3-gear transmission (gear shifting operated via transmitter) ●Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 ●Diff. Gear: 3-bevel diff ●Motor: Type 540 ●Tire Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear) ●Included Items (Japan only): 4-channel transmitter & receiver, MFC-03, 2 servos, 7.2V battery pack & charger ●Requires four R6/AA/UM3 batteries for transmitter (sold separately). |
| Semi-Trailers Separately Available Various types including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length. |
Chassis: Ladder frame with aluminum channels and resin cross members
Body: ABS molded plastic
Drive Train: Four axle semi
Cabin: Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to rear axles which are
equipped with differentials
Motor: RS540 brushed
Pinion Gear: 10 tooth
Transmission: Three speed servo controlled constant mesh
Suspension: Metal leaf spring dampers with built in coil springs
Cabin: Molded ABS plastic, pearl blue in color, metal transfers for
emblems and metal plated parts, clear plastic windows, separate
grille, mirrors and other accessories add to realism, LED light
buckets (LED lights not included)
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber radial
Steering: Bellcrank type
Caster: Adjustable front only, caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in
relation to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Whats in the Box
1/14 scale Tamiya Mercedes Benz Actros 6x4 3363, 540 motor,
tires, wheels, interior detail, ABS body, decal sheet, 3-speed
transmission, coupler and instructions
Radio: 4-channel with 4-channel receiver and analog or digital trim
function
**Important-if using the Multi Function Control, see COMMENTS**
Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment
