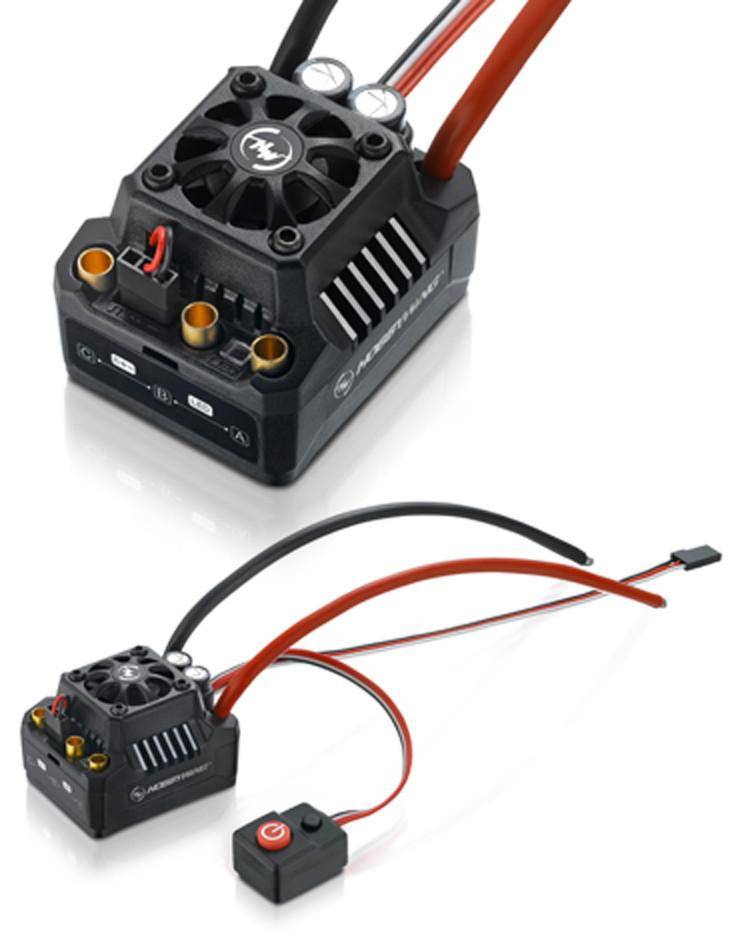

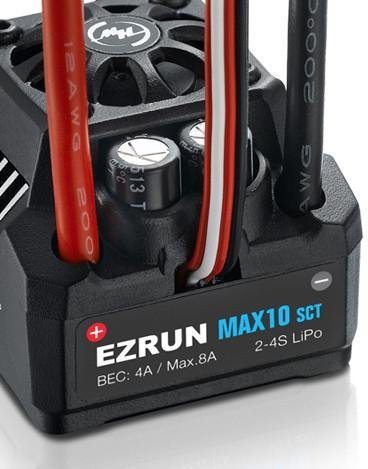

Hobbywing EZRUN MAX10 SCT ESC, Sensorless Brushless 1/10 SCT.
(1) Ezrun MAX10 SCT ESC (3) 12 AWG, 200C Black wires for a brushless motor (1) Double side tape (2) Heat shrink tube User's manual A HOBBYWING decal
- Brand:
- Hobbywing
- Availability:
- In stock
- Delivery time:
- 3-4 Days
$99.99
Excl. tax
- This max10 sct esc is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.
- High reliability & durability;great flexibility & versatility;.

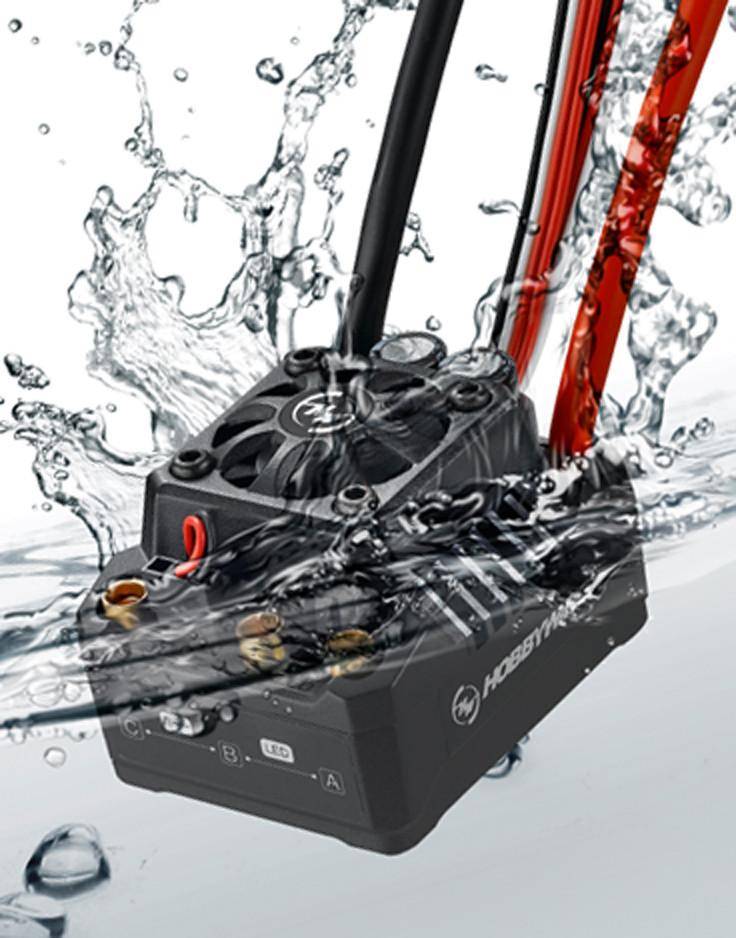

- Advanced and secure electronic switch:the max10 sct features an electronic switch with a lifespan of over 50000 on/off cycles,housed in a completely waterproof, dust-prood and shock-resistant design.
- Applicable to all weather conditions;innovative filter capacitor thermal protection;regular firmware updates free of charge.
- Scale 1/10th brushless sensorless waterproof electric speed controller.
- Specification:
-Product Name:EzRun MAX10 SCT
-Product Number:30102601
-Type:Scale 1/10th Brushless Sensorless Waterproof electric speed controller
-Cont./Peak Current:120A/830A
-Input:2-4S LiPo/6-12 Cells NiMH
-BEC Output:Switch Mode:6V/7.4V,4A
Wires & Connectors:
-Input Wires:Red-12AWG-200mm*1/Black-12AWG-200mm*1
-Output Wires:Black-12AWG-200mm*3
-Input Connectors:No
-Output Connecotors:4.0 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan:
-Size:25.0x25.0x10.0mm
-Voltage Range:5-7.4V
-Powered by:Powered by BEC
ESC Programing via:
-SET Button on ESC:Supported
-LED Program Box:Supported
-LCD Program Box:Supported
-WiFi Module:Supported
-Program Port:FAN/Program Port
-Firmware Upgrade:Supported
Size & Weight:
-Size:49.0x39.5x34.7mm
-Weight:105g
Applications:
-Motors:SL BL Motors/SD BL Motors(only in SL mode)
-Vehicles:1/10thSCTs/Truck/Monster Truck
-KV Rating/T Count:2S LiPo:KV≤6000;3S LiPo:KV≤4000;4S LiPo:KV≤3000(36XX Series of Motors)
