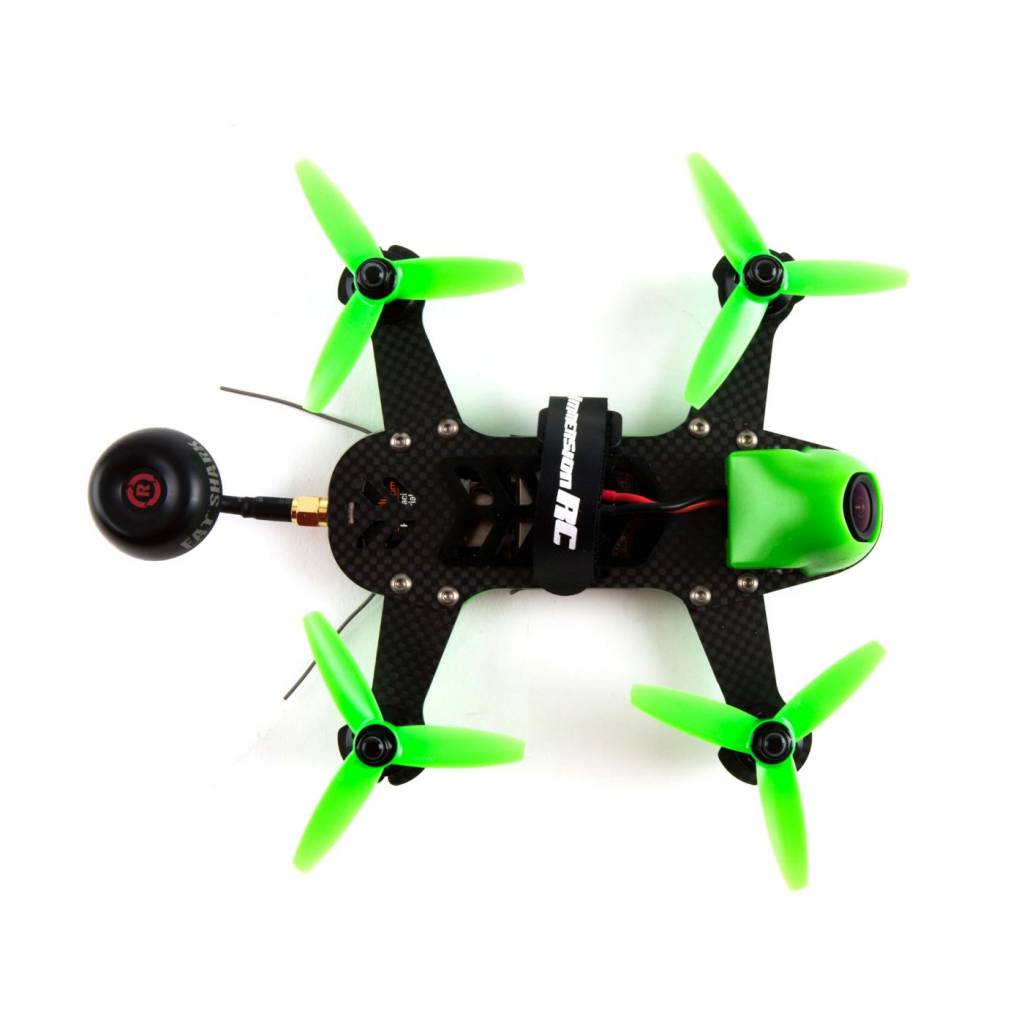

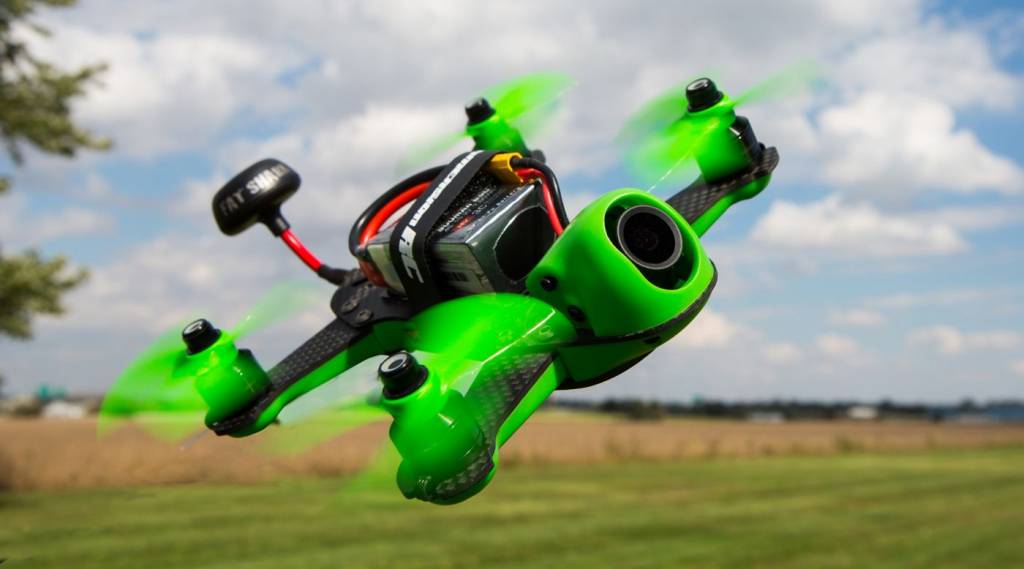

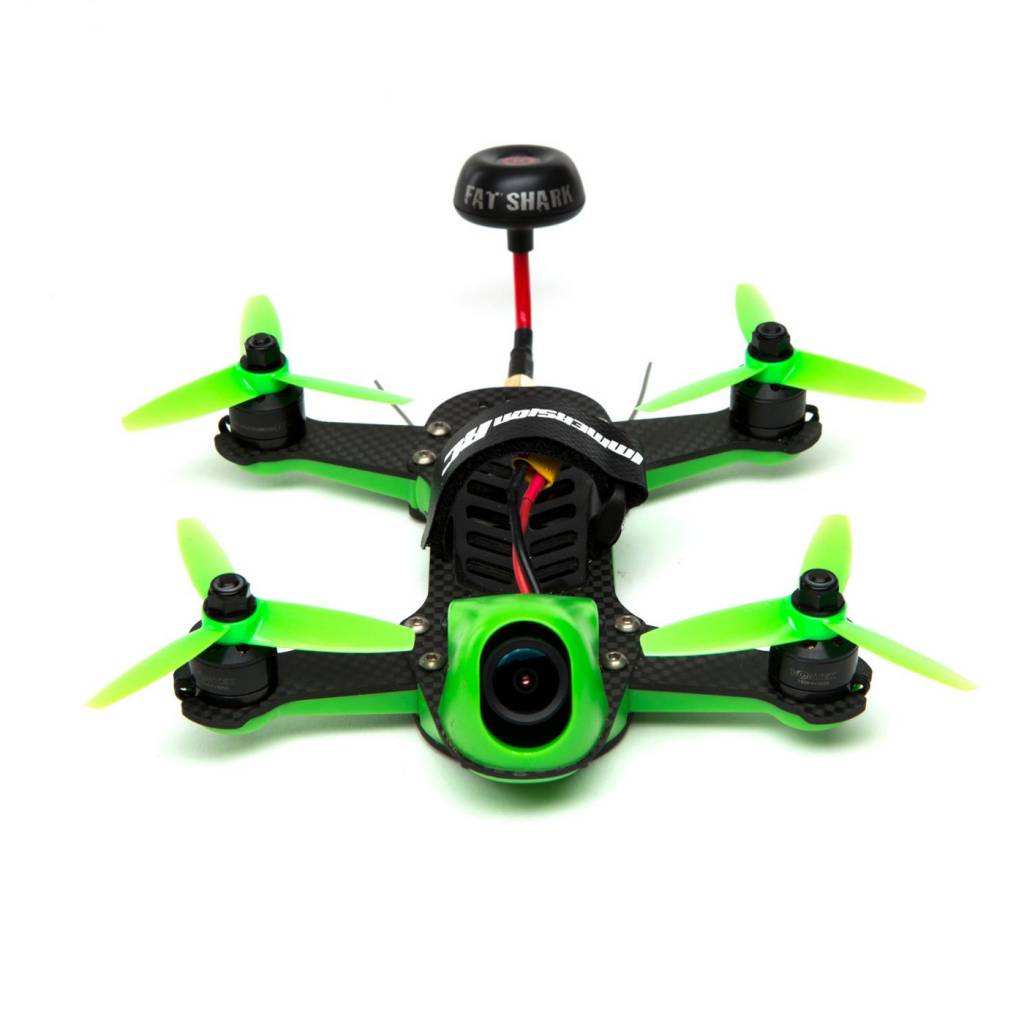

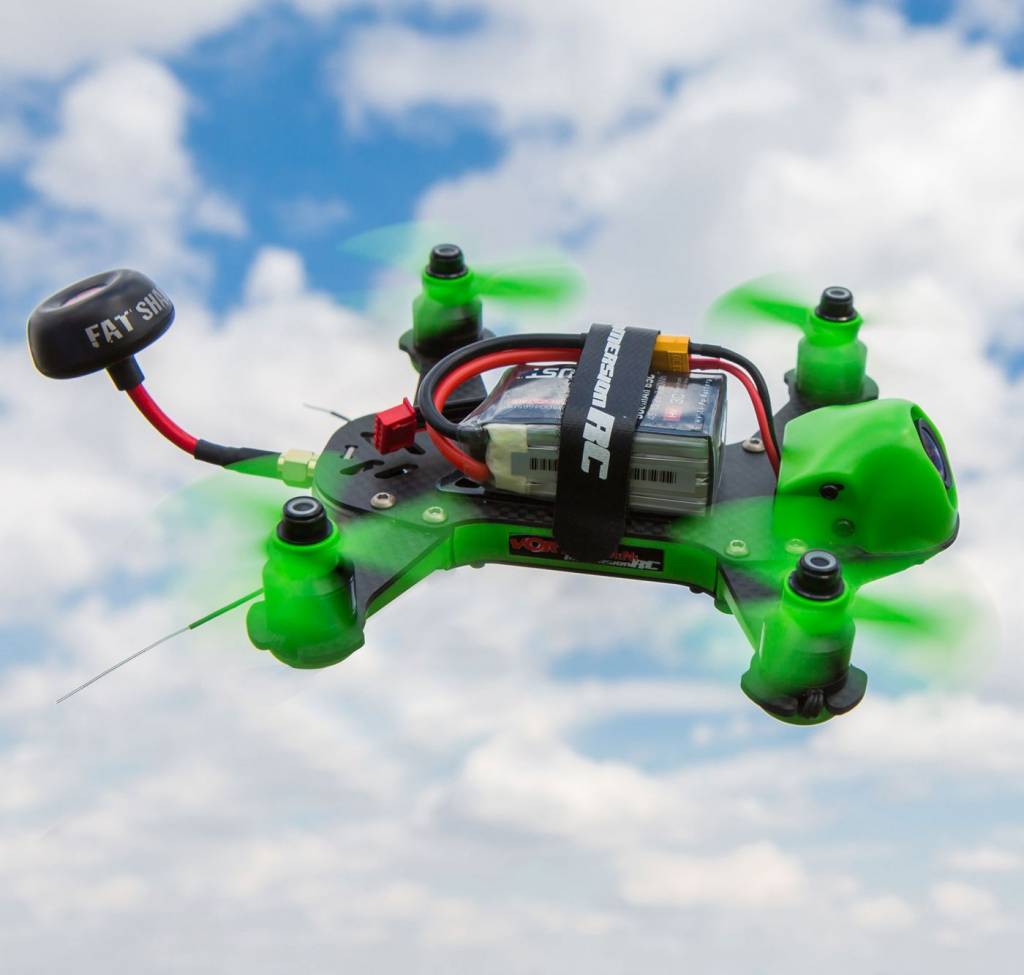

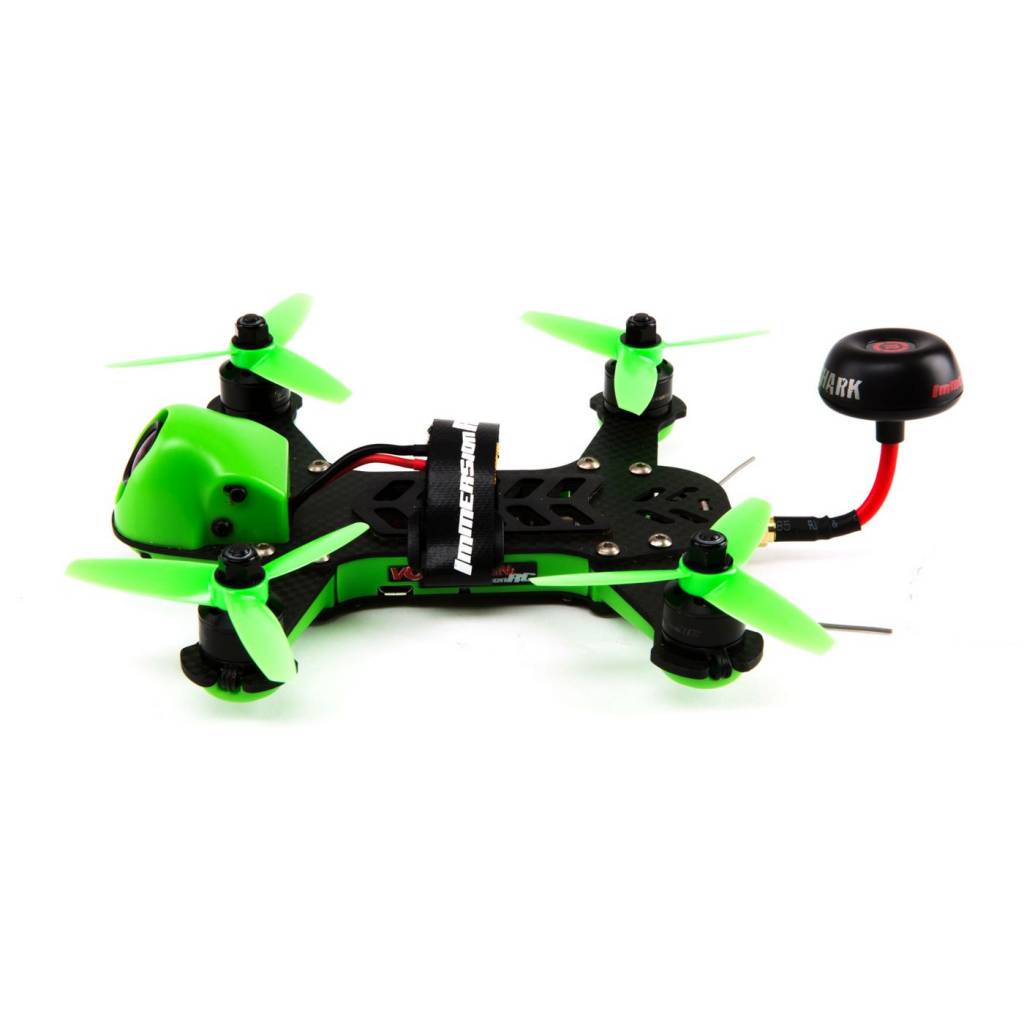

The Blade® brand and ImmersionRC have teamed up to deliver the cutting-edge Vortex 150 FPV racer with Spektrum™ technology. It's fully integrated, tuned and equipped so you can be competitive in a matter of minutes. Race-seasoned pilots can take advantage of a custom power system, cutting-edge 32-bit processing power and full-graphic jet fighter inspired OSD. Plus, there's a programmable LED system you can customize to flash at the competition. Perfect for smaller courses or exploring the backyard or abandoned building, it's durable and fun to fly.

Fully Integrated

Fully integrated into this machine is the flight controller, full-graphic OSD, and 40-channel video transmitter. Loose wiring in the Vortex 150 Pro is virtually nonexistent for a professional look that's easy to maintain.

Seven 32-Bit ARM Processors

Not many mini-quads out there like the Vortex 150 racer can claim the cutting edge support of seven, fully integrated 32-bit ARM processors. There's a dedicated ARM for the flight controller, another for the full-graphic OSD, another just for the programmable LED board at the back of the quad and one ARM for each of the four custom high performance ESCs.

Tough Construction

Built to survive attempts at cutting down virtually anything in its path, the Vortex 150 is built to take a hit and keep on ticking!

Fusion F3 with BetaFlight

The highly integrated Fusion F3 flight controller is equipped with BetaFlight firmware pre-loaded, 32-bit processor, and 8kHz loop times for an out-of the- box control feel that seems almost intuitive. Plus, the software is future-proof with supporting updates easily uploaded via the robust USB port through-hole.

Dynamic Power Control

The Dynamic Power Control function of the video transmitter lowers power automatically when the Vortex 150 is disarmed or ready for a race to start so that interference from other racers on the line is minimized.

Integrated Leading-edge 5.8GHz Video Tx

The fully integrated ‘Tramp' video transmitter has all the bells and whistles. Support for all standard FPV channels and power levels from sub-1mW to >600mW. Dynamic Power Control, introduced with the Vortex 250 Pro, is taken to a new level, pre-take-off power level may be dropped to sub-1mW while waiting on the starting grid, saving precious battery power, and keeping temperatures low. After a crash landing the power level is dropped to a minimum to preserve battery life during the search and to help with localization using a directional antenna.

Integrated Touch-N-Race

A TNR (NFC) antenna integrated into the side of the quad provides full support for the ImmersionRC Personal and Race Director's wand. The latter enables additional channels for events with special spectrum use permissions. Set your video transmitter frequency and power without touching the quad, greatly simplifying casual and race channel setup. No fiddly dip switches, no push-buttons and key-press sequences to remember and no guesswork.

PitStick Mode for Simple Channel Changing

When placed in this mode, the Vortex 150 Mini will power up with the video transmitter disabled, and will only start transmitting when instructed to by a the R/C transmitter. The right stick is used to select channels 1..8 using the extremes of stick movement. Up for CH1, Up-Right for CH2, etc.

DSMX® Video Transmitter Control

Another first in the FPV world, Horizon Hobby has teamed up with ImmersionRC to integrate video transmitter control into certain Spektrum® radios. Quads using this feature power up safely in pit-mode, and after finding a free channel on the video goggles, the menu on the Spektrum radio may be used to select frequency band, channel, and power level.

ProTuned

The preloaded firmware has been ProTuned to make this quad fly like its on rails. You can explore other ProTune uploads and try out what some of the biggest names in FPV quad racing have shared so that the Vortex 150 Pro can fit your exact performance needs.

Bright LEDs and Lost Model Alarm

A set of eight 24-bit RGB LEDs is protected between the upper and lower frames on the tail end. Through a dedicated 32-bit ARM processor, users can program a favorite color, brake lights, turn indicators or just about anything your imagination can conjure.

Find it, Fast!

Integrated into the Vortex 150 is a lost model beeper that's loud enough to be coined “ear piercing”. So if you ever cut loose, the ease of finding your Vortex 150 will help you get back into the game fast.

'Gen3' 32-bit, 16-20A ESCs, with OneShot42/125 and Multishot

Custom 16-20A ESCs supporting all of the common standards provide regenerative braking, for crisp-responsive flight using CleanFlight, or BetaFlight. A 32-bit ARM processor runs each ESC, ensuring plenty of processing power to drive even the most fussy brushless motors. These third-generation ESCs include advanced de-sync detection critical for use with tiny brushless motors running at high rpms. Of course no ImmersionRC ESC would be complete without our innovative rotorSENSE, which programs prop direction with the flick of a finger. No more swapping motor wires.

Custom V-Spec Motors

The custom high-speed V-Spec 1306-3100kv brushless outrunner motors feature a high-speed rating and spin 3" propellers for the punch to accelerate quickly and conquer the most demanding race courses.

Full Graphic Display with EzOSD

The full-graphic On Screen Display (OSD) on-board provides in-flight updates of critical parameters. The EzOSD menu allows all options to be programmed in the field using the RC transmitter and a headset or monitor. Several OSD layouts are included. A real-time interface with the flight controller enables artificial horizons, fighter-jet style displays and an exchange of flight parameters. All OSD layouts include screen-center alerts for critical warnings such as battery voltage, EzUHF Link Critical and more.

Bind-N-Fly® Completion

Now it's possible to start enjoying high-performance racing virtually the moment you open the box. Just charge the battery, bind the model to your Spektrum™ DSMX® technology compatible transmitter and fly.
