AXI Axial 1/10 SCX10 II '17 Jeep Wrangler Unlimited CRC RTR
- Brand:
- AXI
- Availability:
- In stock
- Delivery time:
- 3-4 Days
$409.99
Excl. tax
Axial 1/10 SCX10 II '17 Jeep Wrangler Unlimited CRC RTR
Maximize performance and detail for scale enthusiasts!

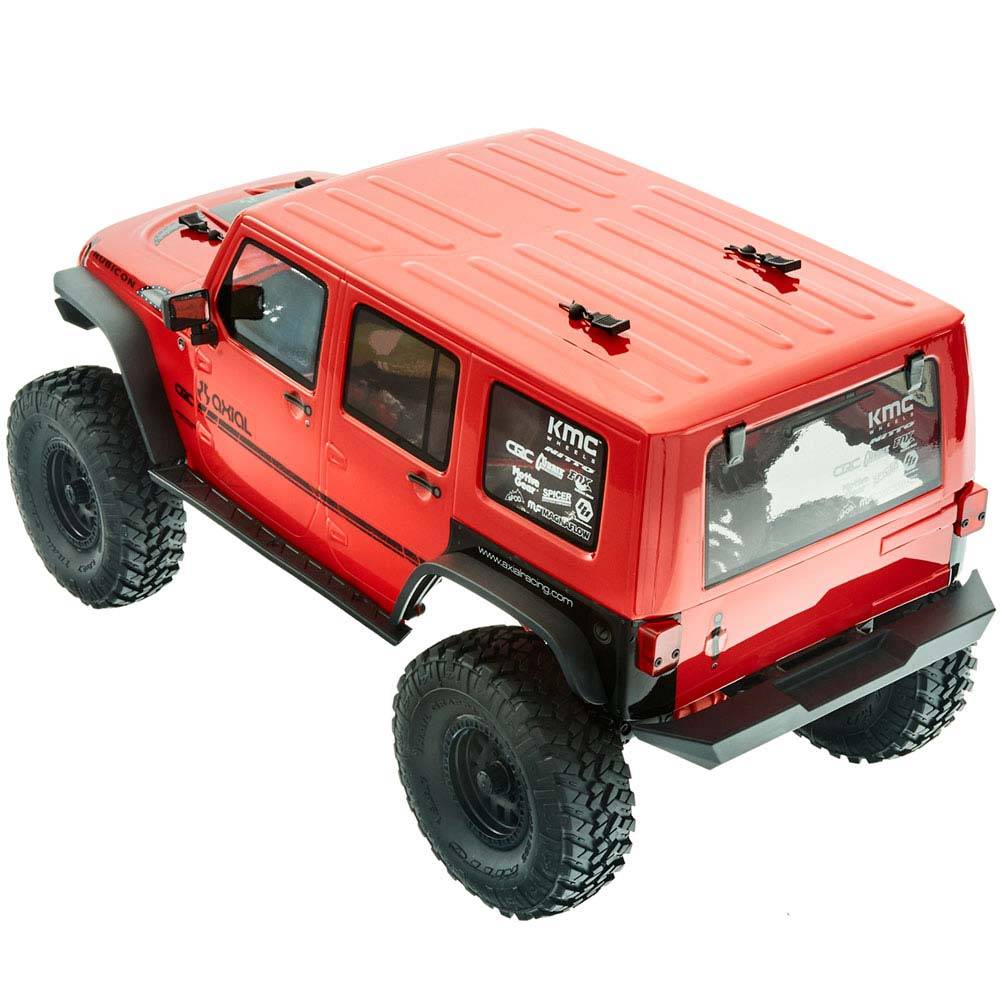

The SCX10™ II 2017 Jeep® Wrangler Unlimited CRC edition is a perfect example of that union, matching unparalleled trail-ability with stunning good looks. Some of the specialized parts included are CRC front and rear bumpers, unique rock rails with additional body-mounting points, molded front and rear fenders and a CRC-inspired hood. Additional external scale features consist of molded side mirrors, door handles, windshield wipers, hood latches and a full set of lights (six in total) that mount into a realistic front radiator/light bucket combo.
- Detailed 2017 Jeep Wrangler Unlimited body
- Molded fenders and body details
- CRC front and rear bumpers
- CRC rock sliders
- 1.9" KMC Machete wheels
- 1.9" Nitto trail grappler tires
- Chassis mounted servo
- Front mounted battery
- Waterproof receiver box
- SCX10 LC transmission
- AR44 Hi-Pinion Axle
- All metal links
- HD metal CNC cut diff gears
- Tactic 3-channel radio
- Tactic TSX45 servo
- New Ae-5L ESC with light ports
- 35T brushed motor
- LED lights in body

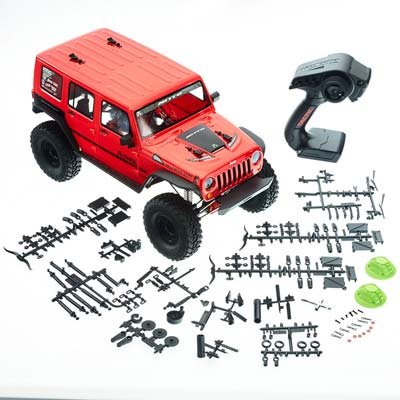

SCALE DETAILS INCLUDED!
This product includes realistic molded scale detail parts such as a molded plastic radiator with LED light holders for head lights and turn signal markers, side mirrors, door handles, plastic hood latches, wipers, CRC front and rear bumpers, rock rails, stylish front and rear fenders, and rear LED holders with red tail light lenses.NOTE: installation of some items required. Hardware included.

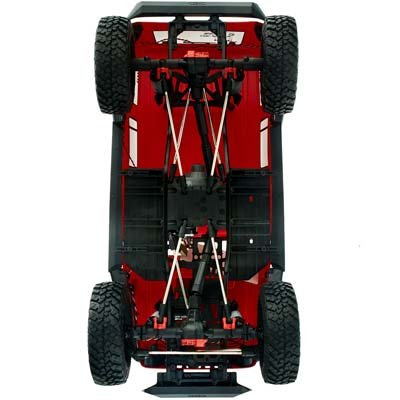

The 2017 Jeep® Wrangler Unlimited CRC edition builds on the wildly popular SCX10™ II chassis, a proven platform that includes unique features that have made this truck a top performer in its class. High-clearance AR44 high-pinion axles, a chassis mounted servo (CMS), re-designed AX10 transmission case and tough steel suspension links are just a few of the performance parts tucked away under the detailed Jeep® Wrangler Unlimited body.
AR44 HI-PINION AXLES
In 2008, the AX10 axle was used in the launch of the SCX10™ chassis platform. After seven years of utilizing the original AX10™ axle and two years of development, Axial is proud to introduce the newly developed AR44 axle with the industry's first high pinion gear set. The next chapter of the Axial SCX10™ begins with scale realism backed with true technological development!
- High pinion gears for added ground clearance & better driveshaft angles
- The high pinion design allows increased gear surface contact for increased durability
- Larger load bearings used around the gear set to reduce flex and create a stronger drivetrain
- Single piece axle housing for added strength
- 1-piece all-metal locker front and rear
- Small pumpkin for increased clearance and a more realistic, scale look
- Bolt on link mounts
- Knuckle carriers and straight axle adapters have a better mounting system with 10-degree increment adjustments
- Optimized gear ratio 3.75 compared to 2.92 previously. This reduces torque twist which is typically seen with other small pumpkin axle designs
KINGPIN ANGLE
- 8 degree kingpin angle
- Improved scrub radius over the AX10 axle
AR44 UNIVERSAL AXLE SET
Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.
35T BRUSHED MOTOR, WATER RESISTANT
Providing an even balance of speed and crawling, the 35-turn brushed motor features a worry-free design with an integrated cooling fan allowing for extended periods of use. Easy operation: no tuning, no fuel, and no loud exhaust noise. Just plug 'n' go!
AX10™ TRANSMISSION
The ultra compact transmission allows for a wide range of gearing choices. The overall ratio can be adjusted using different pinion and spur gear choices allowing super high speed or competition level crawling speed.
CHASSIS MOUNTED SERVO (CMS)
- Scale looks with proper suspension geometry
- Anodized aluminum links included w/ M4 rod ends
- Adjustable servo mounting system allows for a wide range of servos to be used
- Properly designed suspension for nearly zero bump steer
ALL STEEL SUSPENSION LINKS
Strong steel links for both suspension and steering. Large M4 rod ends for durability.
WB8 HD WILDBOAR™ DRIVESHAFTS
- 3-piece driveshaft with strengthened slider-floater tube
- Increased surface at the connection between the ball joints and output shaft tubes
- 2x11mm cross pin adds 25% more surface area providing more strength for the ball joint
- Captured cross pin design eliminates older set screw design for more durability/easy maintenance
- Adjustable length driveline parts included in box
1.9 KMC XD229 MACHETE CRAWL WHEELS
Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are molded in black and feature stunning scale detailing on the front and a standard 12mm hex on the back.
1.9 NITTO TRAIL GRAPPLER M/T TIRE (S30)
The officially licensed Nitto Trail Grappler M/T Tires offer a fantastic blend of off-road performance while still retaining excellent composure for on-road use. They are molded in our durable S30 compound with large blocks that provide excellent bite when the going gets tough!
AE-5L ESC WITH DRAG BRAKE
The Axial AE-5L ESC is 3S LiPo capable, yet easily switched "in the field" between LiPo and NiMh battery types with a simple jumper – no complex procedures.- LED Light controller built-in with dual LED outputs for headlights/taillights.
- Male Star Plug lead – compatible with the most common polarized plug.
- Jumper 1 provides a simple plug and play choice between LiPo or NiMh.
- Jumper 2 switches Drag Brake settings.
- Waterproof design with Star Plug / laser etched heat sink.
ADJUSTABLE BATTERY TRAY
The new adjustable battery tray is now relocated lower and further forward for better weight distribution and center of gravity (COG).- Adjustable tray that prevents the battery from coming loose or shifting while driving
- Posts are included to fine tune the fit based on the battery you choose
- Easy access for quicker battery changes
- Can accommodate batteries up to 32x44x147mm (3S 5,000 mAh)
STEEL C-CHANNEL FRAME RAIL CHASSIS
The realistic high strength c-channel chassis frame is made of durable steel with cross bracing for reinforcement and is held together with all hex hardware. Realistic looking frame and cross braces improve chassis rigidity (torsional stiffness). Realistic shock hoops with multiple shock mounting positions allows you to adjust your suspension for maximum performance. The simplified design makes maintenance and assembly quick and easy. The contoured skid plate significantly reduces hang-ups on terrain. Compared to the previous design, additional holes have been added to the rear portion of the frame rails for making wheelbase adjustments.ADJUSTABLE WHEELBASE
- Wheelbase adjustment is easily done in the rear end without affecting the steering geometry and maintaining zero bump steer.
- Adjustable wheelbase (11.4"/ 12.0" / 12.3") with optional links sold separately
- 4 link rear
- 12.3" wheelbase
RECEIVER BOX, WATERPROOF
Three different silicone seals are included, one for the antenna, one for the servo wires (includes three slots for three channels), and one that acts as a gasket for the receiver box cover. No more stress when running in mud, water, or snow!WIRE ROUTING
Wire routing has been thoroughly thought through to help keep your chassis layout looking clean. In addition to including wire clips/guides, there has been a channel created that runs the length of the chassis so you can run additional wires hidden inside the c-channel frame.
DUAL SLIPPER CLUTCH
Our dual slipper design uses a pad on each side of the spur gear for added surface area. This allows for more precise tuning and holding power. The spur gear features strong, 32 pitch gearing for high torque applications.
ADJUSTABLE COILOVER SHOCKS
The threaded shock bodies hold a single coilover spring. They are oil filled and allow you to tune the dampening rate.
TACTIC TTX300 3-CHANNEL SLT RADIO
Sport-level racers and bashers will appreciate the Tactic TTX300’s many popular features, along with its amazing adjustability. It features a programmable 3rd channel making for incredible versatility; it can operate functions such as two-speed shifting, winches and lights, making it ideal for a vast array of opportunities. Need more reasons? There’s SLT (Secure Link Technology), which creates an unbreakable link between the receiver and your transmitter with push-button ease.
TACTIC 3-CHANNEL 2.4GHz RECEIVER
The Tactic TR325 2.4GHz receiver uses no crystals and features an internal antenna, so you’ll experience worry free driving without frequency conflicts or antenna damage. This lightweight, compact, and bind button equipped receiver with LED indicator makes setup easy!
AE-5 ESC, WATERPROOF
- Male Star Plug lead - compatible with the most common polarized plug.
- Jumper 1 provides a simple plug and play choice between LiPo or NiMh.
- Jumper 2 switches Drag Brake settings.
- Waterproof design with Star Plug / laser etched heat sink.
METAL GEAR TACTIC SERVO, 151 oz-in, WATER RESISTANT
The included Tactic TSX45 metal gear servo is rated at 151 oz-in of torque for massive turning power and dual ball bearings provide smooth and precise movement for the metal gear train.
Jeep, the Jeep grille and related logos, vehicle model names and trade dress are trademarks of FCA US LLC and used under license by Axial Inc. © 2017 FCA US LLC.Nitto® and Trail Grappler® are registered trademarks of Nitto Tire U.S.A., Inc.
NOTE: Prototype shown. Some imagery may differ from the actual product.
