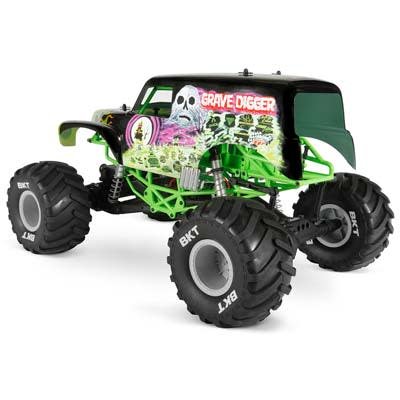

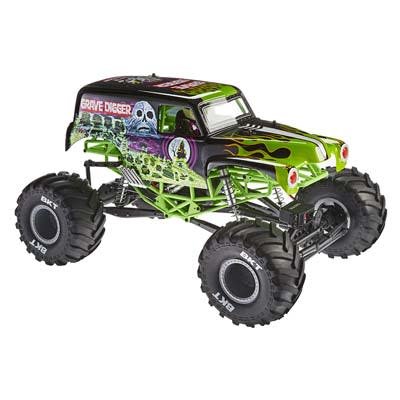

AXI AX90055 1/10 SMT10 Grave Digger Monster Jam Truck 4WD
Licensed scale replica! The original Grave Digger was created by driver Dennis Anderson in 1982 and was built from a ‘52 Ford pickup. The Grave Digger name came from the fact that the Grave Digger was far older than most of its competitors. When other dr
- Brand:
- AXI
- Availability:
- Out of stock
- Delivery time:
- 1-2 Weeks
$359.99
Excl. tax
- Easy access battery tray for 2S or 3S LiPo packs.
- Yeti rear sway bar plus mounts for optional front sway bar.
- Officially licensed 2.2" BKT tires on 2.2" satin silver monster truck wheels.
- Waterproof radio box.
- Compact AX10 transmission with brushed motor, dual slipper and 32-pitch gears for high-torque applications.
- WB8 HD “Wild Boar” front and rear driveshafts.
- Redesigned heavy-duty C hubs and steering link.
- Adjustable, aluminum-body oil shocks with axle mounting option.
- The only ready-to-run solid-axle scale Monster Jam¨ truck available!
- AR60 axles.
- Grave Digger® replica polycarbonate body, plus interior and driver figure.
- Includes “zoomie” style chrome exhaust headers.
- Proven Yeti 4-link suspension front and rear.
- New SMT10 replica chassis, cage and skid plate in green.
- Easy access battery tray for 2S or 3S LiPo packs.
SMT10™ TUBE FRAME CHASSIS
Axial went all out when designing the chassis and roll cage for the SMT10™ Grave Digger Monster Jam Truck. Very similar to the modern era full size monster trucks, this chassis was developed for maximum strength and an extremely detailed appearance. The chassis offers many pivot points for suspension tuning. Scale realism and strength are achieved through triangulation of the chassis tubes, making it ready for maximum attack and hard core Monster Truck bashing.
AR60 OCP-AXLE™
The AR60 OCP-Axle™ is constructed from high strength composite material which has a low flex rate but is not as brittle as standard glass filled nylon. The combination of axles and a true 4-link suspension gives you optimal performance for any terrain with the look of a real 1:1 vehicle.- Off-center pumpkin design
- Axle tubes are reinforced with a boxed-in axle truss
- High strength composite material
- Updated steering knuckles for dual shear, also eliminates secondary bolt on plate
- Updated differential cover and servo mount for new look
HEAVY DUTY C-HUBS
Monster trucks are known for wild, high flying action, so they strengthened the front c-hubs to help take on hard impacts from jumps and extreme bashing!
HEAVY DUTY HYDRAULIC RAM STYLE STEERING LINKS
For steering, they designed a heavy duty tie rod, drag link, and simulated scale hydraulic ram steering link to help get the massive BKT tires pointed in the right direction so you can stay on course.
TRAILING ARM 4-LINKED REAR SUSPENSION
The SMT10™ features the proven AR60 axle with a trailing arm 4-linked rear suspension and additional shock mounting positions.
MULTIPLE SHOCK MOUNTING POSITIONS
Included are a variety of shock mounting points for running dual shock setups and for additional suspension tuning options. There’s also additional mounting points on the cage and at the axle for moving your shocks to a more scale, vertical position if desired.
RECEIVER BOX, WATERPROOF
The waterproof receiver box utilizes three different silicone seals: one for the antenna, one for the servo wires (includes three slots for three channels), and one acts as a gasket for the receiver box cover. No more stress when running in mud, water, or snow!
EASY ACCESS BATTERY TRAY
The battery tray can be easily accessed at the rear of the vehicle. To install your battery, remove one pin, swing out the tray door and slide the battery pack in. The tray is fully height adjustable with four screws, making room for most standard sized 2S and 3S LiPo battery packs.
REAR SWAYBAR FOR ADDED STABILITY
Keeping torque twist and body lean to a minimum during acceleration. A sway bar's main function is to control body roll, yet still allow your shocks to move vertically with the changing terrain.
WB8 HD DRIVESHAFTS
Updated design for larger diameter crosspin (2x11mm) for added strength. New center splined slider floats between each end, added material on this part reduces flex and fatigue.
AX10 TRANSMISSION
Updated Dual Pad slipper system with 32 Pitch gearing. New slipper design uses a pad on each side of the spur gear for added surface area. More precise tuning and holding power. Stronger 32P gearing for high torque applications. 56T Spur / 11T Pinion RTR gearing for 3S. Includes 16T Pinion for 2S.
2.2 BKT MONSTER JAM TIRES
BKT is the official and exclusive tire manufacturer of Monster Jam and its fleet of monster trucks. BKT has designed and developed the special BKT Monster Jam Tire, a purpose-built tire to handle the rigors of Monster Truck racing and freestyle competition. The 1/10 scale BKT tire is modeled to provide scale realism and maximum performance for your Axial Monster Truck.
GRAVE DIGGER REPLICA POLYCARBONATE BODY
- .040 polycarbonate replica of the classic Grave Digger 1950 panel van
- .040 scale interior with driver figure
- Glow in the dark helmet set
- Chrome Zoomie style headers
2.2 MONSTER TRUCK WHEELS (silver)
2.2 monster truck wheels molded from a blend of high quality nylon materials for strength and durability with a solid 12mm hex mount.• 12mm hex mount
• Breather holes
• Foam inserts included
TACTIC TTX300 3-CHANNEL SLT RADIO
Sport-level racers and bashers will appreciate the Tactic TTX300’s many popular features, along with its amazing adjustability. It features a programmable 3rd channel making for incredible versatility; it can operate functions such as two-speed shifting, winches and lights, making it ideal for a vast array of opportunities. Need more reasons? There's SLT (Secure Link Technology), which creates an unbreakable link between the receiver and your transmitter with push-button ease.
METAL GEAR TACTIC SERVO, 151 oz-in, WATER RESISTANT
The included Tactic TSX45 metal gear servo is rated at 151 oz-in of torque for massive turning power and dual ball bearings provide smooth and precise movement for the metal gear train.
27T MOTOR
The Axial 27T motor supplies plenty of power for powering over obstacles, jumping, and bashing!
AE-5 ESC, WATERPROOF
The Axial AE-5 ESC is 3S LiPo capable yet easily switched “in the field” between LiPO and NiMh battery types with a simple jumper – no more complex procedures.- Male Star Plug lead – compatible with the most common polarized plug in RC.
- Jumper 1 provides a simple plug and play choice between LiPo or NiMh.
- Jumper 2 switches Drag Brake settings.
- Waterproof design with waterproof On/Off switch / Star Plug / laser etched heat sink.
