Hobbywing 38040012 XRotor FPV Combo (2205 motors) for Drone Racing
FPV Combo designed for Drone Racing Reliable, High responsive brushless system BLHeli / Oneshot ready
- Brand:
- Hobbywing
- Availability:
- In stock
- Delivery time:
- 3-4 Days
$119.99
Excl. tax

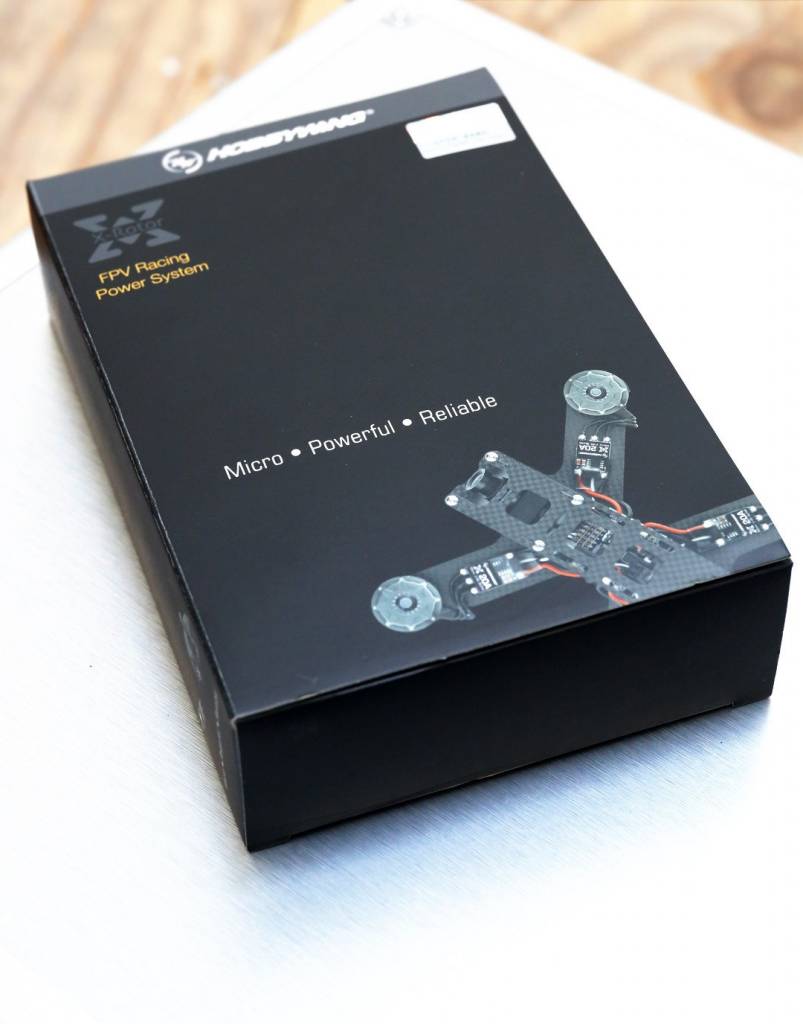

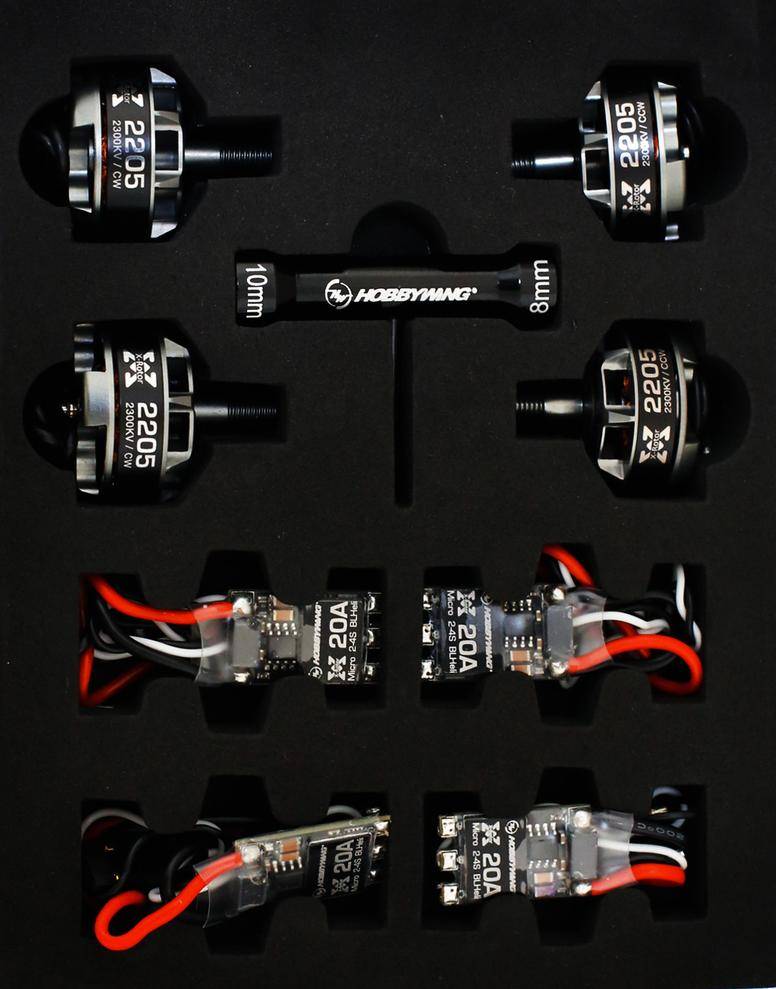

What's in the box.
- 4x Xrotor-Micro-2-4S
- 2x XRotor-2205-TITANIUM-CW-V1
- 2x XRotor-2205-TITANIUM-CCW-V1
- Multi-purpose T-Socket Wrench
FPV POWER SYSTEM Combo - Type schedule
| Type | sku | ESC | Motor |
| C | 38040002 | Xrotor-Micro-35A -BLHeli | XRotor-2205-1800KV-G1 |
| E | 38040004 | Xrotor-Micro-30A -BLHeli-S | XRotor-2205-2300KV-G1 |
| G | 38040012 | Xrotor-Micro-30A BLHeli-S-Dshot600 | XRotor-2205-2300KV-G1 |
| H | 38040013 | Xrotor-Micro-30A BLHeli-S-Dshot600 | XRotor-2205-2600KV-G1 |
Factory Edition available
- Innovative firmware exclusively developed by HOBBYWING technology
|
Model
|
BLHeli 20A 2-4S | BLHeli 30A 2-4S |
BLHeli 35A 3-6S
|
 |
 |
|
|
|
SKU
|
30901066 | 30901071 | 30901070 |
| Application | FPVs with 130-280mm Diagonal Wheelbase | FPVs with 130-280mm Diagonal Wheelbase | FPVs with 150-330mm Diagonal Wheelbase |
| LiPo Power input | 2-4S | 2-4S | 3-6S |
|
Cont.Current
|
20A | 30A | 35A |
| Burst Current | 30A | 40A | 50A (burst in 10 sec) |
| BEC Output |
|
N/A |
N/A |
| Input wires | 20AWG-100mm* (Red/Black) | 18AWG-100mm* (Red/Black) |
18AWG-100mm* (Red/Black) |
| Output Wire | Solder tabs (no wires) | Solder tabs (no wires) | Solder tabs (no wires) |
| Connectors (In/Out) |
no (raw wires) | no | no |
| Weight / Size | 7g/24.0x13.9x5.5mm | 7g/24.0x13.9x5.5mm | 10g/36.5x16.7x5.5mm |
* Note: All the wire length above is the original length, not the length you see from the outside.
