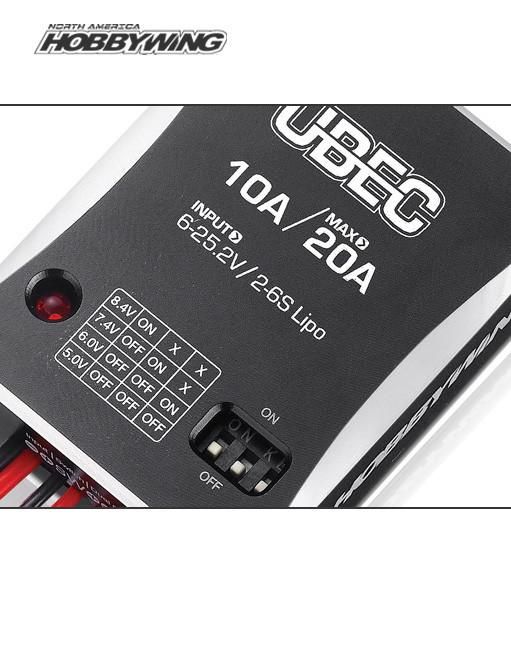

Hobbywing 30603000 UBEC 10A (2-6S)
The UBEC is an external switching mode DC-DC regulator; it draws the DC voltage from 2-6S Lipo battery, drops it to a voltage level that is suitable for receivers and other electronic devices, and keep providing the stable current output up to 10Amp. As t
- Brand:
- Hobbywing
- Availability:
- In stock
- Delivery time:
- 3-4 Days
$36.99
Excl. tax
- Input Voltage: 6V－25.2V (2-6S LiPo)
- The output voltage is programmable by dip switches.
4 Options: 5.0V/6.0V/7.4V/8.4V - Output Amperage: Continuous Current: 10A, Peak Current: 20A
- Dimension: 43.1 x 32.3 x 12.5mm (L x W x H)
- Weight: 36g (1.27oz)
- It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%;
- 4 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc.
- It owns BEC shoot-through protection, which prevent the input voltage from directly flowing to the output end and causing damages to receivers, servos and other electronic devices;
- It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable;
- Two cables are connected in parallel at the output end of the UBEC, allow larger current to flow into the receiver.
- It has one status LED, which lights up when the output voltage is within the normal range;
- The external switch can turn on/off the UBEC easily;
- Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.
